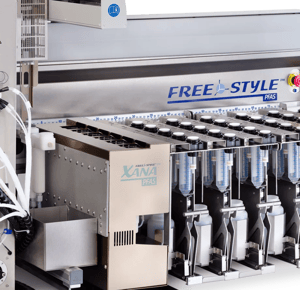

Detail cut-out FREESTYLE XANA PFAS | © LCTech GmbH
Individually or Combined

All-in-one Solutions for the PFAS Workflow

The technical equipment from LCTech is perfectly coordinated with a wide range of PFAS standards/regulations (such as US EPA 537.1, 533, 1633, DIN 38407-42) and ensures your success in mapping the complete PFAS workflow from extraction to automated clean-up and concentration.

PFAS Sample Prep: Think LCTech!
Excellence meets Experience

PFAS Workflow for Solid Samples

MIX-TRACTION, X-TRACTION | © LCTech GmbH
X-TRACTION PFAS or MIX-TRACTION
For extraction
D-EVA Vacuum Concentration | © LCTech GmbH
D-EVA
For the sensor-controlled concentration of extracts
FREESTYLE with figure 6 EluCLEAN columns | © LCTech GmbH
FREESTYLE SPE PFAS
For clean-up (e.g. Dual-SPE). Ideal with the EluCLEAN SPE columns.
D-EVA Vacuum Concentration | © LCTech GmbH
D-EVA
For sensor-controlled concentration to a few µL
PFAS Product Overview

An Overview of the PFAS Workflow for Aqueous Samples

FREESTYLE  XANA with figure 6 EluCLEAN columns | © LCTech GmbH
FREESTYLE XANA PFAS
Also available as a TableTop version. Ideal with the EluCLEAN SPE columns.
D-EVA Vacuum Concentration | © LCTech GmbH
D-EVA Concentration
For sensor-controlled concentration to a few µL

Products for
PFAS Sample Preparation

X-TRACTION loaded with 4 bottles | © LCTech GmbH

X-TRACTION® PFAS

  • Best method for the extraction of long-chain PFAS
  • Better results compared to standard extraction methods
  • Fast and simple extraction of PFAS
Front view loaded MIX-TRACTION | © LCTech GmbH

MIX-TRACTION

  • Mixing, extraction, dissolving and emulsification of diverse samples
  • High-performance vertical shaking, faster and more efficient than shaking by hand
  • PFAS extraction US EPA-compliant, e.g. US EPA 1633 (2nd draft) (shaking by hand)



FREESTYLE GPC SPE loades with 3 racks | © LCTech GmbH

FREESTYLE SPE PFAS

  • Free of blank values due to PTFE-free materials (compliant with all common PFAS regulations/standards, such as US EPA 1633)
  • All SPE standard formats from 1 - 15 mL can be used on the SPE rack
  • Up to 4 bars of positive pressure when loading the samples on the column, enables the processing of samples containing non-dissolved sample matrix (e.g. for river water)
  • Double-walled needle for effecting rinsing during the quantitative transfer of the sample, and aspiration from containers closed with septa
  • Possibility of Dual-SPE (2 SPE columns one after the other within one method)
  • Unsupervised processing of a sequence also possible overnight via pressure monitoring (non-stop policy)
FREESTYLE XANA loaded with 24 x 1 L sample bottles | © LCTech GmbH

FREESTYLE XANA PFAS

  • Free of blank values due to PTFE-free materials (compliant with all common PFAS regulations/standards, such as US EPA 1633)
  • Fully automated system for max. 24 samples of up to 1L in one sequence. High throughput due to parallel sample processing (e.g. 24 samples according to US EPA 537.1 in just 6.5 hours)
  • Time-optimised interlacing of the process with parallel processing of up to 7 samples
  • Up to 4 bars of positive pressure when loading the samples on the column, enables the processing of samples containing non-dissolved sample matrix (e.g. for river water)
  • Unsupervised processing of a sequence also possible overnight via pressure monitoring (non-stop policy)
  • All common 3 mL or 6 mL columns can be used.
  • Very good results for PFAS analysis, can also be used for a wide range of applications in water analysis (e.g. PAHs, pesticides, pharmaceutical analytes)
FREESTYLE XANA TabeTop loaded | © LCTech GmbH

FREESTYLE XANA PFAS TableTop

  • Free of blank values due to PTFE-free materials (compliant with all common PFAS regulations/standards, such as US EPA 1633)
  • Fully automated system for 30 samples of up to 250 mL in one sequence. High throughput due to parallel sample processing (e.g. 30 samples according to US EPA 537.1 in just 9 hours)
  • Up to 4 bars of positive pressure when loading the samples on the column, enables the processing of samples containing non-dissolved sample matrix (e.g. for river water)
  • Unsupervised processing of a sequence also possible overnight via pressure monitoring (non-stop policy)
  • All common 3 mL or 6 mL columns can be used
Figure 6 EluCLEAN columns | © LCTech GmbH

EluCLEAN™ Columns

  • SPE column solutions to prepare PFAS samples in various matrices, such as drinking water, solid and aqueous environmental samples, food and feed samples
  • Proprietary SPE columns with various interactions to improve the recovery rates of long-chain PFAS (> C13) and neutral sulfonamide PFAS
  • Corresponds to international and national standards
  • Enrichment and clean-up with just one cartridge
  • Outstanding recovery rates and low standard deviations
D-EVA Vacuum Concentration | © LCTech GmbH

D-EVA

  • Sensor-controlled final vacuum
  • No analyte losses due to automatic switch-off at 400-800 µL
  • No introduction of PFAS from the environment during evaporation
  • Faster evaporation than with standard methods 23 samples of 40 mL methanol to 400 to 800 µl under 3 h
  • Standard laboratory equipment such as Falcon tubes can be used

Do you have any further questions?

TThe LCTech experts are happy to provide you with individual solutions.
