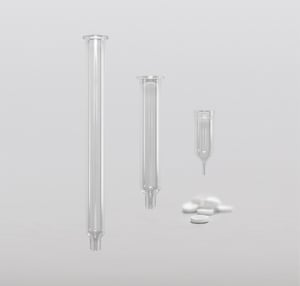

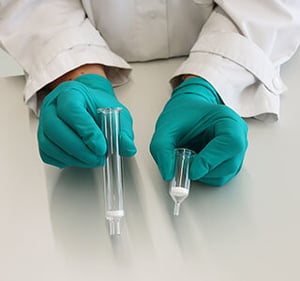

Various SPE glass columns | © LCTech GmbH
SPE Columns for Filling

SPE Empty Columns and Accessories

LCTech offers various glass and SPE columns for self-filling and other accessories for individual use in the laboratory. Columns made of plastic are not suitable for some applications in solid phase extraction due to the release of impurities. LCTech therefore offers glass columns filled or unfilled in various sizes. Of course, inert accessories such as stainless steel needles, glass fibre filters and lids are also available.

Empty Glass Columns

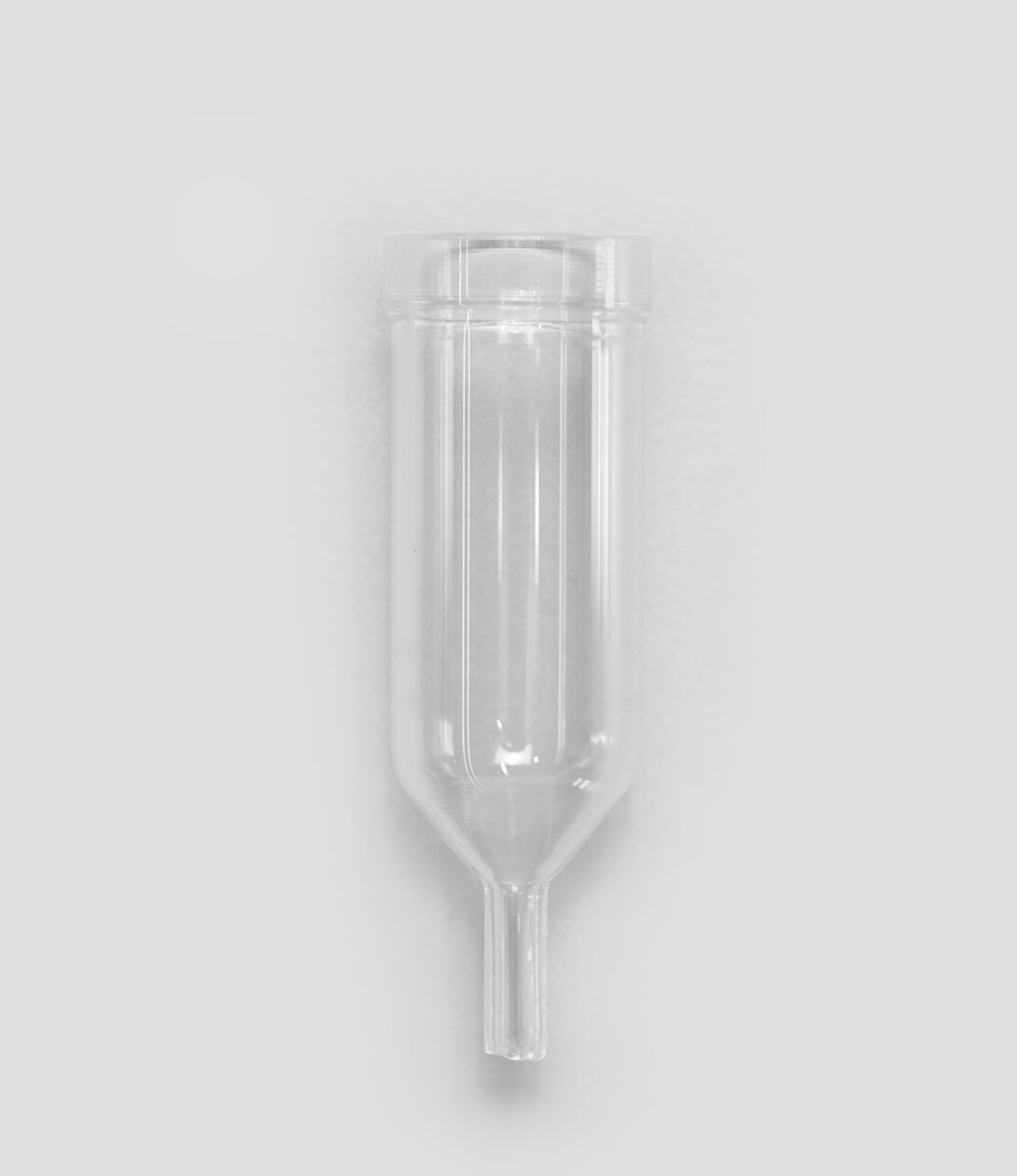

empty TINY glass column | © LCTech GmbH
TINY Glass Column

Suitable for usage in combination with GC-Vial, fits on top of a GC-Vial.

Length: 55 mm
Outer diameter: 17 mm
Outer diameter outlet pin: 4 mm
Nominal content: approx. 5 mL
Quantity: 150 pieces welded in strips of 10 pieces
P/N 19582

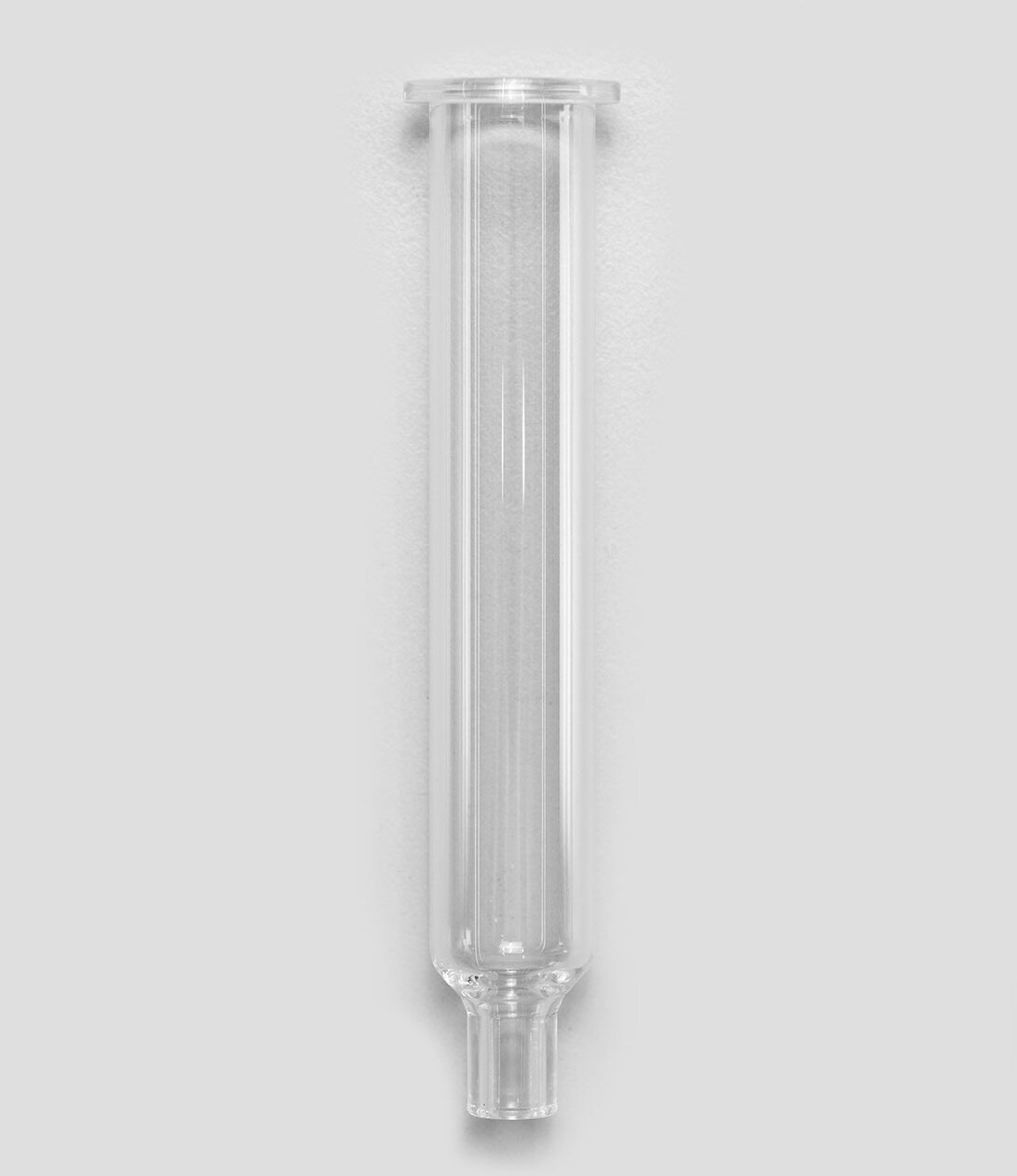

empty glass column 105 mm | © LCTech GmbH
Glass Column 14 mL

Wide column outlet for fast flow, adapter to Luer available. Usable in FREESTYLE SPE system

Length: 105 mm
Outer diameter: 17 mm
Outer diameter outlet pin: 9,5 mm
Nominal content: ca. 14 mL
Quantity: 100 pieces welded in strips of 5 pieces
P/N 10374

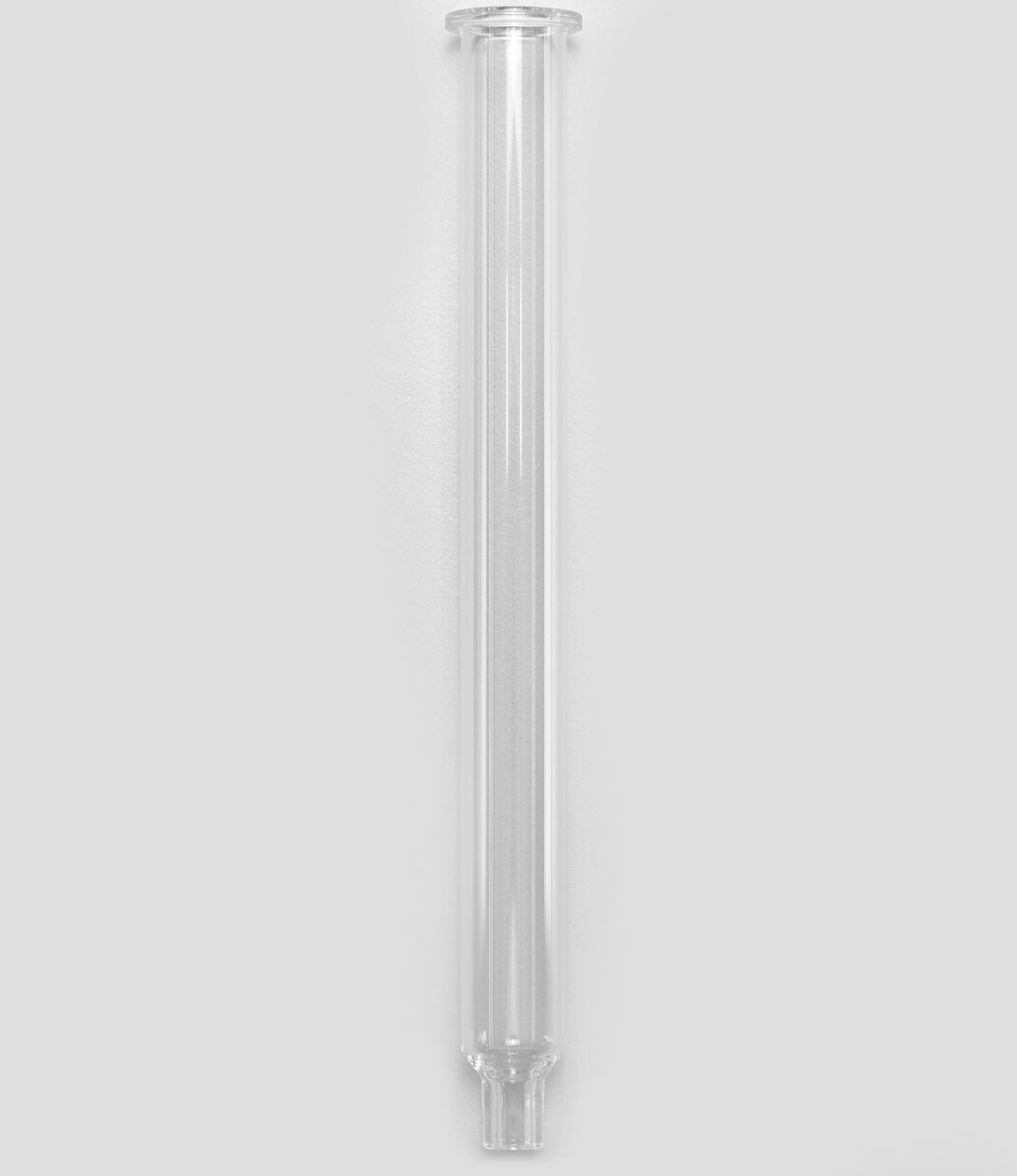

empty glass column 180 mm | © LCTech GmbH
Glass Column 26 mL

Wide column outlet for fast flow (e.g. ideal for manual handling of MOSH/MOAH method), adapter to Luer available

Length: 180 mm
Outer diameter: 17 mm
Outer diameter outlet pin: 9,5 mm
Nominal content: approx. 26 mL
Quantity: 110 pieces
P/N 11156

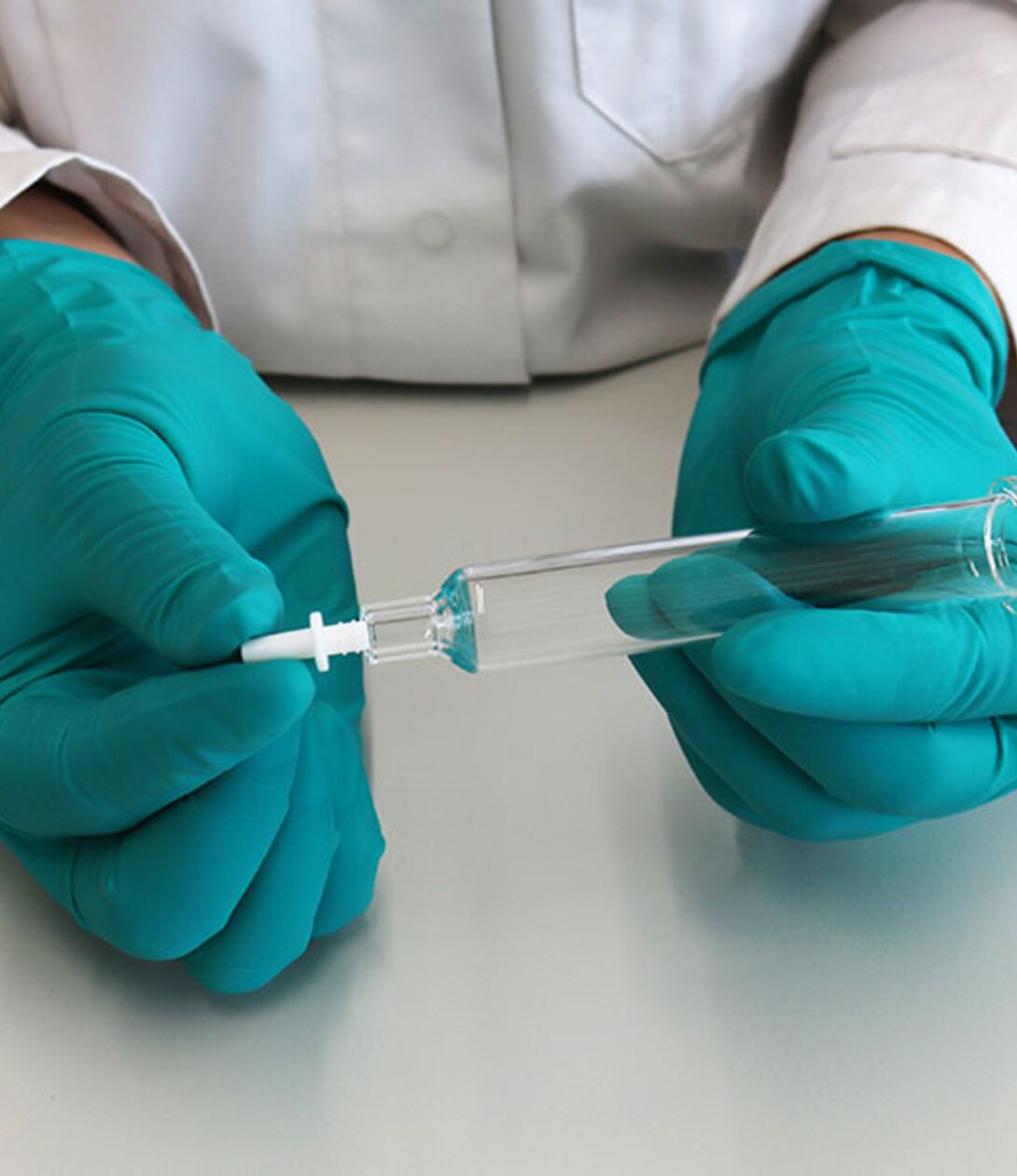

Luer adapter for glass columns | © LCTech GmbH
Adapter Glass Columns to Luer

Reusable, suitable for glass columns P/N 11156 & 10374

Quantity: 10 pieces
P/N 11043

SPE SMART Column PP

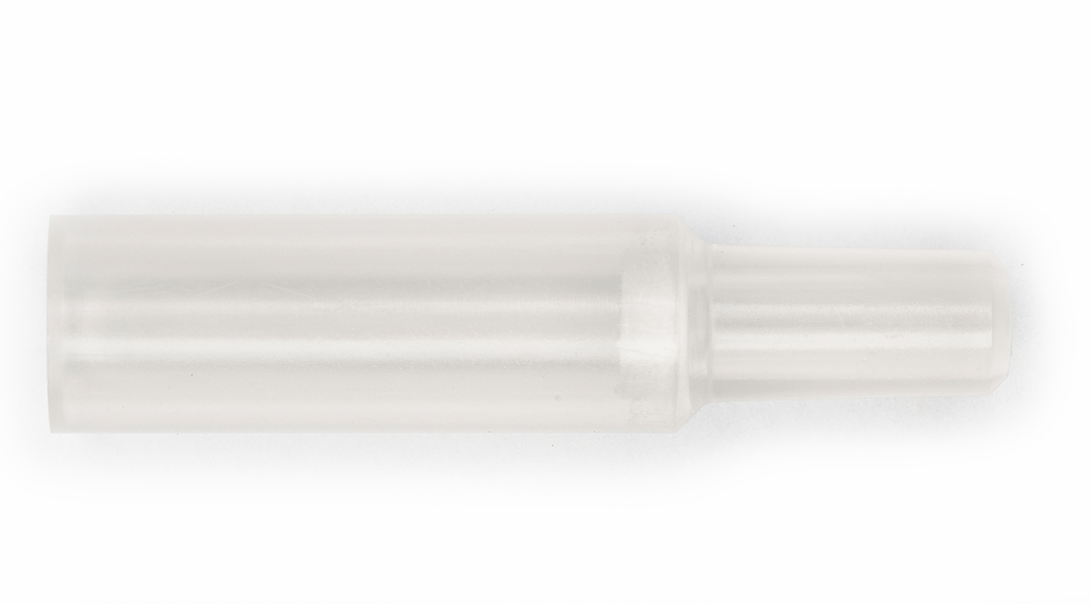

empty SMART column pp | © LCTech Gmbh
SMART Column, PP

Miniaturized applications, nominal content 150 µL, incl. 2 PE filter elements.

Quantity: 1000 pieces
P/N 12853

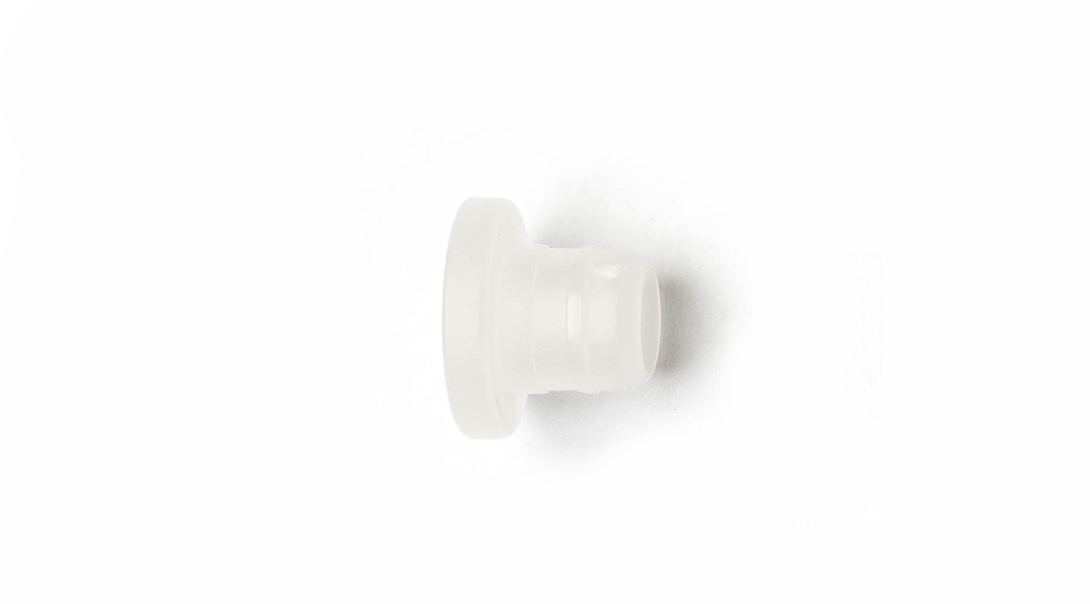

Cap for inlet | © LCTech GmbH
Cap for Inlet

only for P/N 12853

Quantity: 100 pieces
P/N 14328

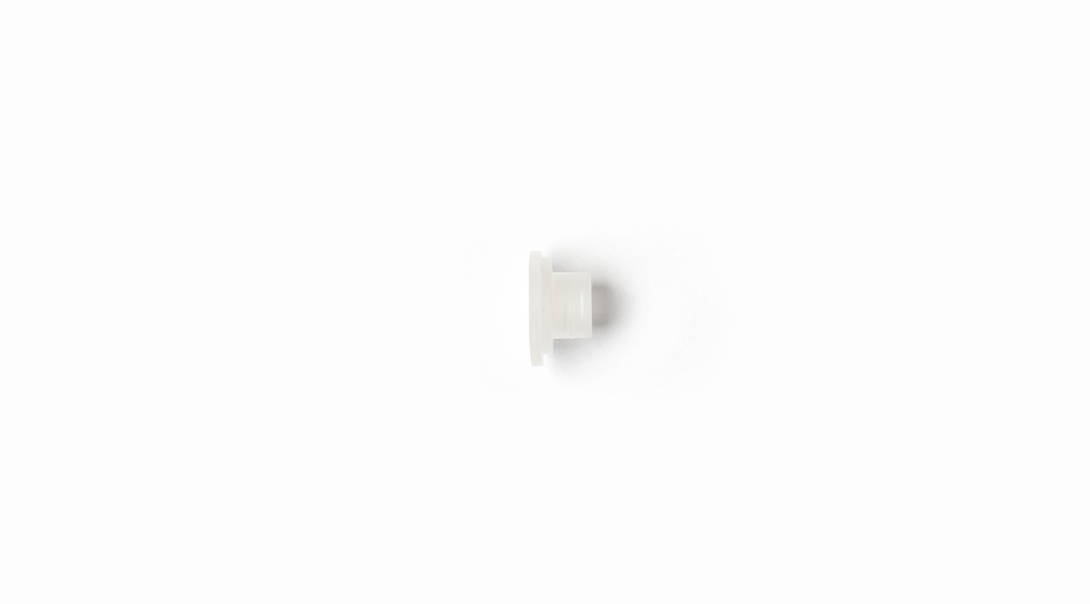

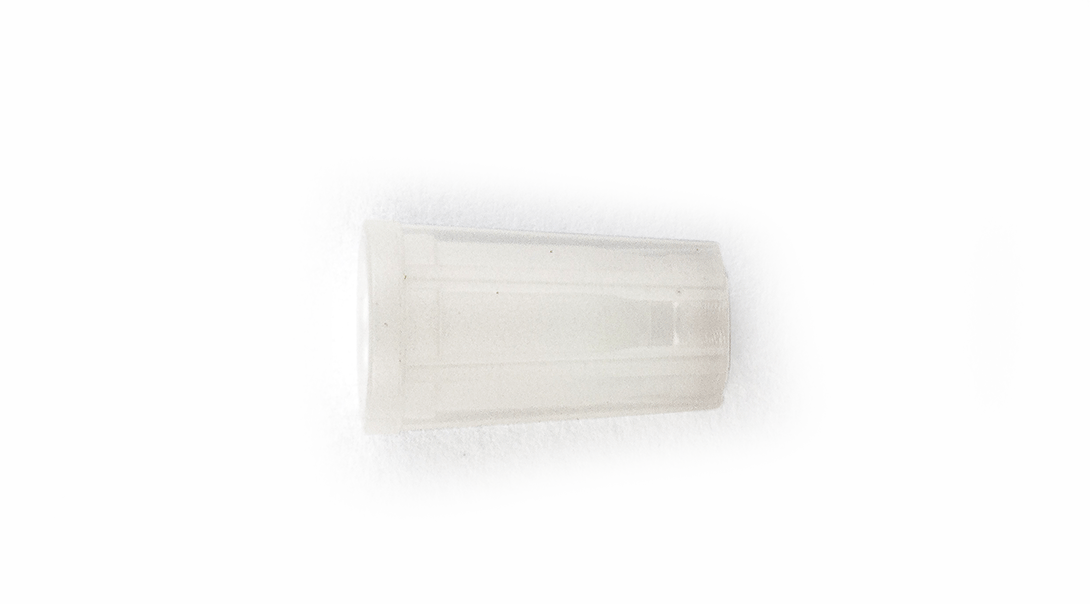

Plug for Luer | © LCTech GmbH
Plug for Luer-Outlet

For P/N 10904 & 12853

Quantity: 100 pieces
P/N 10932

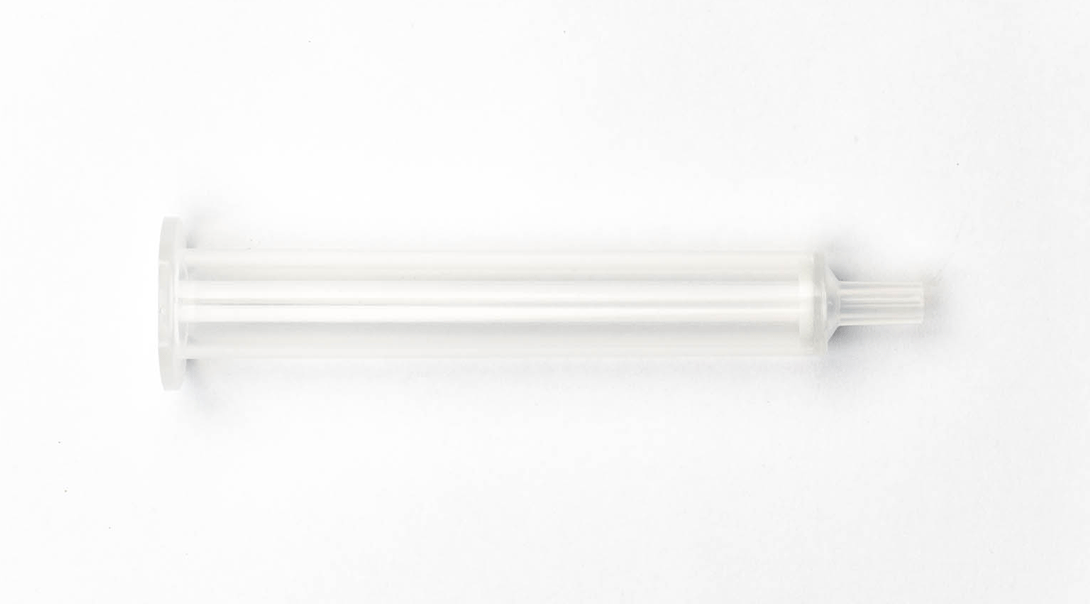

SPE Column, 3 mL PP

SPE column 3 mL | © LCTech GmbH
SPE Column, 3 mL, PP

Incl. 2 PE filter elements

Quantity: 1000 pieces
P/N 10904

Cap for SPE colu,m 3 mL | © LCTech GmbH
Cap for 3 mL SPE Column

Suitable for e.g. P/N 10904

Quantity: 100 pieces
P/N 14314

Accessories

Adapter for SPE column | © LCTech GmbH

Adapter for SPE Columns (Inlet Side)

Connects any size column onto a 1, 3, 6 or 15 mL column, with 1.5 m aspiration with PTFE tube.

P/N 19379

Adapter for SPE columns PFAS | © LCTech GmbH

Adapter for SPE Columns (Inlet Side) for PFAS-Application

Connects any size column onto a 1, 3, 6 or 15 mL column, with 1.5 m aspiration PE tube.

P/N 19380

Glass reservoir | © LCTech GmbH

Reservoir (2 pcs/pck), Made of Glass

Fits to all LCTech 3 mL PP columns as well as 3 mL Immunoaffinity columns. For sample load (100 mL), labwasher-proof, reusable, includes screwing and PTFE seal.

Quantity: 2 pieces
P/N 10896

Sealing rings glass reservoir | © LCTech GmbH

Seal

Spare part for sample reservoir
P/N 10896, PTFE

Quantity: 10 pieces
P/N 10909

Glass Reservoir | © LCTech GmbH

Reservoir (2 pcs/pck), Made of Glass

Fits to all LCTech glass columns (P/N 10374 & 11156 as well as to all ELUFIX-columns 9370) except TINY columns. For sample load (100 mL), labwasher-proof, reusable, includes screwing and PTFE seal.

Quantity: 2 pieces
P/N 9370-1

Sealing ring glass reservoir | © LCTech GmbH

Seal

Spare part for sample reservoir
P/N 9370-1, PTFE

Quantity: 10 pieces
P/N 9373-2

loaded vacuum Manifold EluVac | © LCTech GmbH

Vacuum Manifold EluVac™

  • Chemical-resistant material to process various applications in the food and environmental sector
  • Suitable for SPE clean-up, mycotoxin sample clean-up, filtration
  • Suitable for HPLC and LC-MS/MS analysis

Glass Fibre Filters

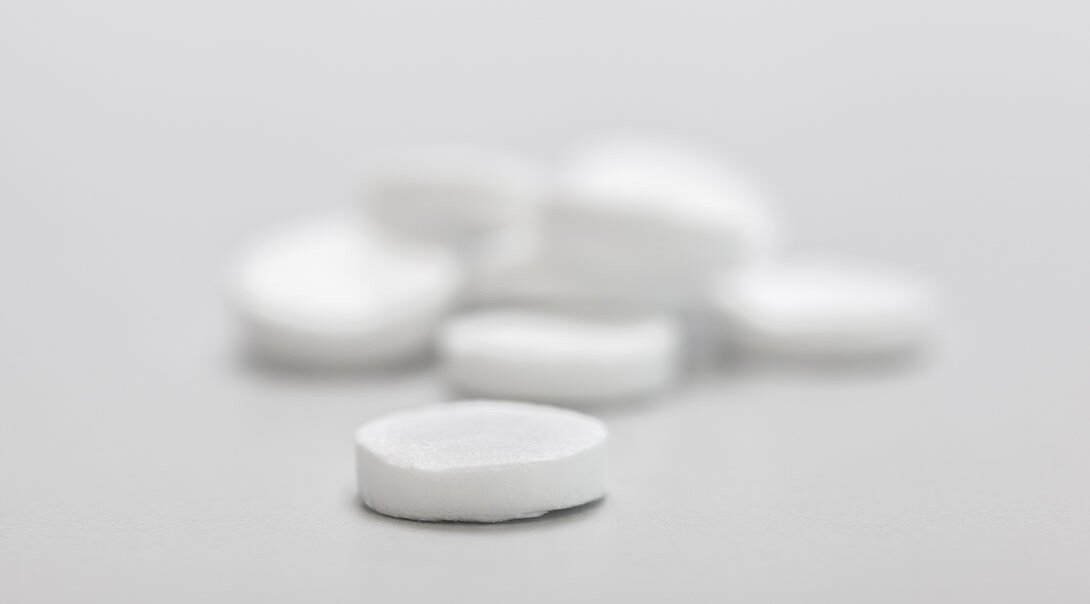

Fluffy glass fibre filter | © LCTech GmbH
Fluffy Glass Fibre Filters

Binder-free, bakeable , extra thick for easy handling and a stable position in the column. Have an equivalent flow behavior compared to the thin glass fibre filters. Ideal for all LCTech glass columns

Diameter: 15 x 3,5 mm
Quantity: 100 pieces
P/N 17835

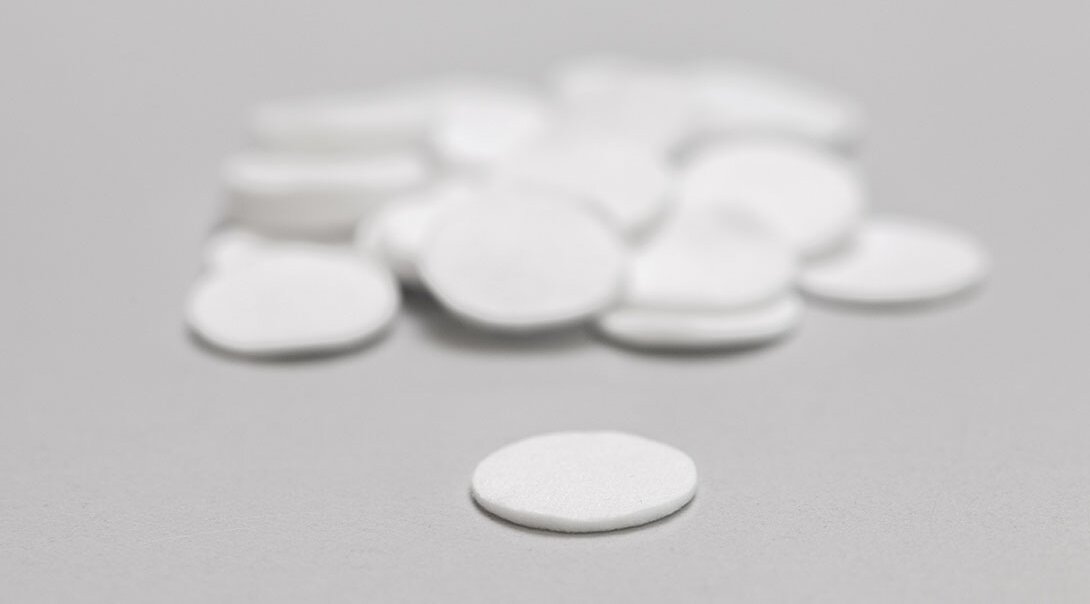

Glass fibre filter normal | © LCTech GmbH
Glass Fibre Filters

Binder-free, bakeable, ideal for all LCTech glass columns

Diameter: 15 x 1,06 mm
Quantity: 100 pieces
P/N 18560

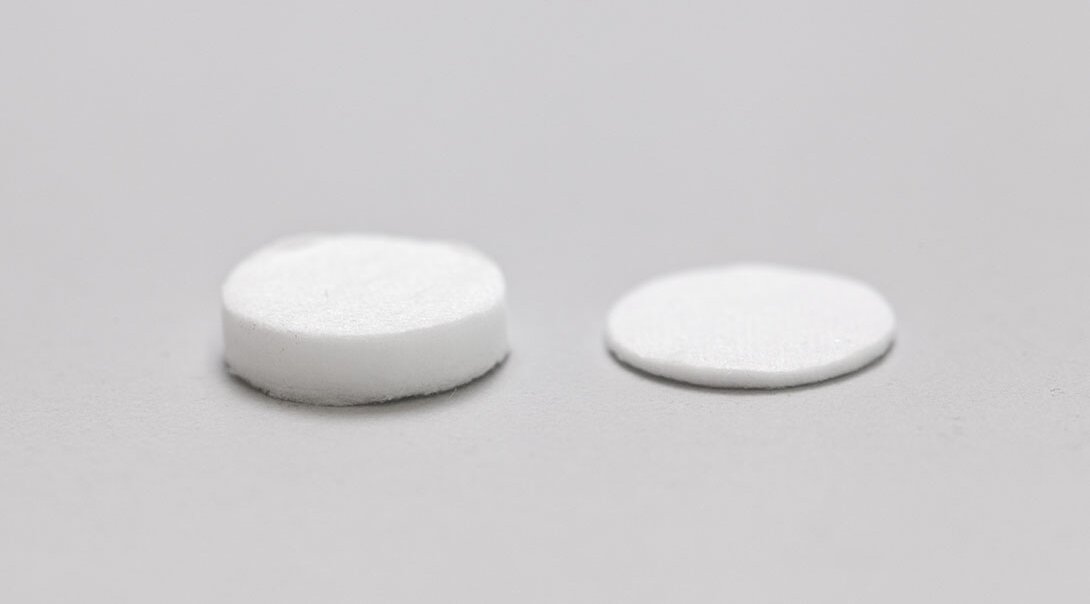

Comparison filter Fluffy and normal | © LCTech GmbH
Fluffy and Glass Fibre Filters

Comparison of thickness

Tool for inserting Filter Elements

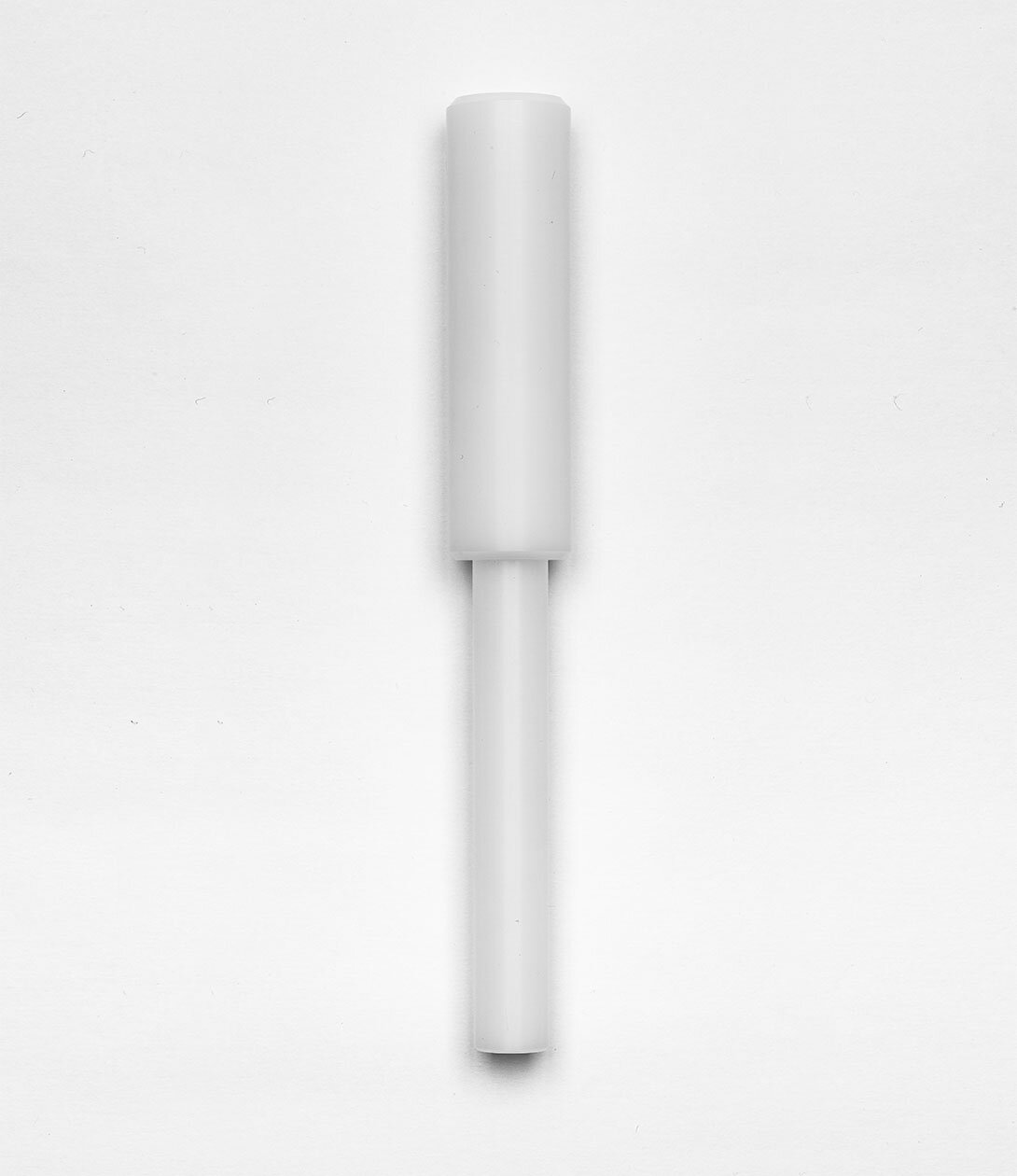

Frit inserting tool (POM) | © LCTech GmbH
Frit Inserting Tool (POM)

Only for glass columns P/N 10374 and 19582

Diameter: 14 mm
Quantity: 1 pieces
P/N 14164

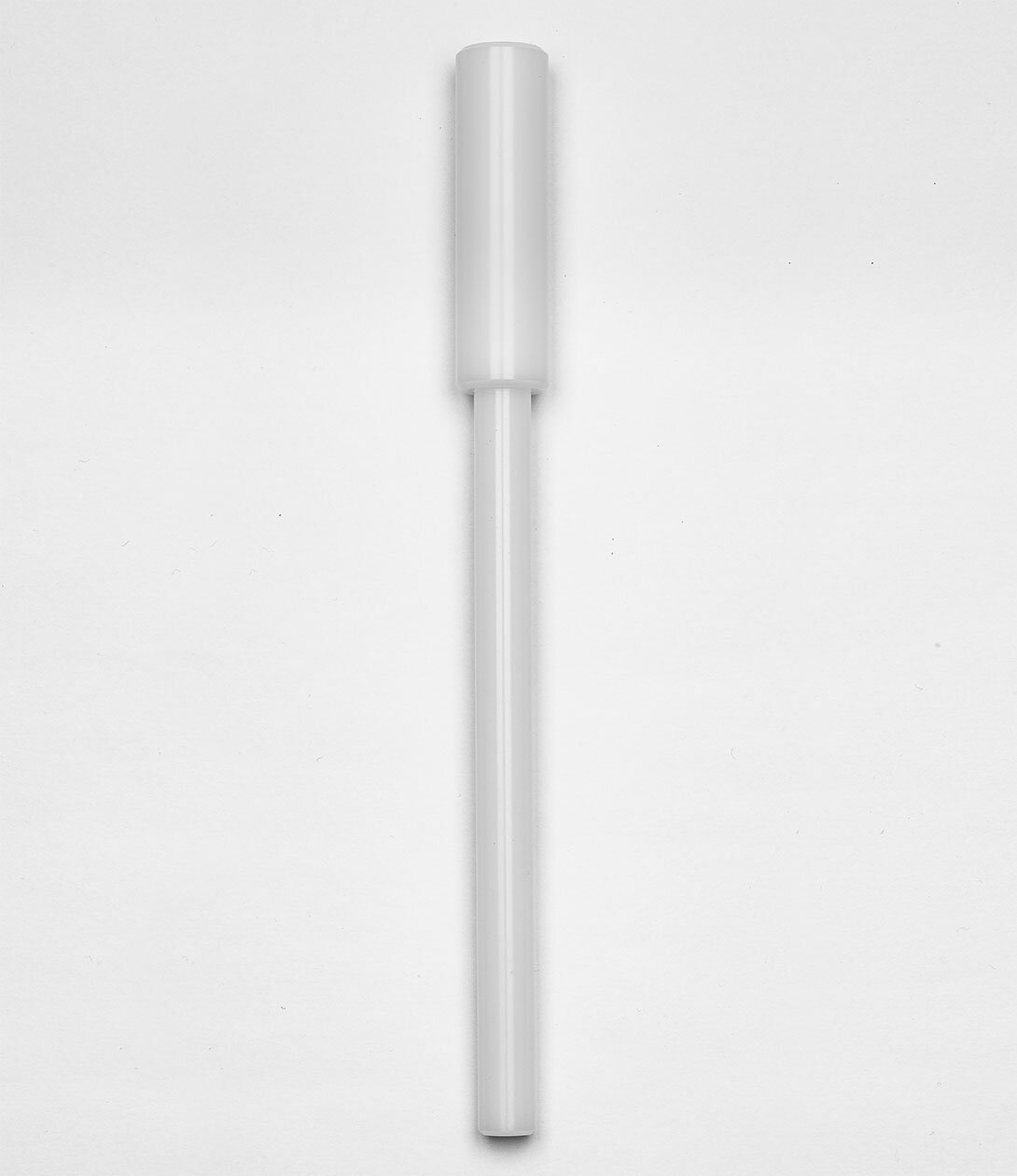

Frit inserting tool long (POM) | © LCTech GmbH
Frit Inserting Tool (POM), Long Version

Only for glass column P/N 11156

Diameter: 14 mm
Quantity: 1 piece
P/N 19619

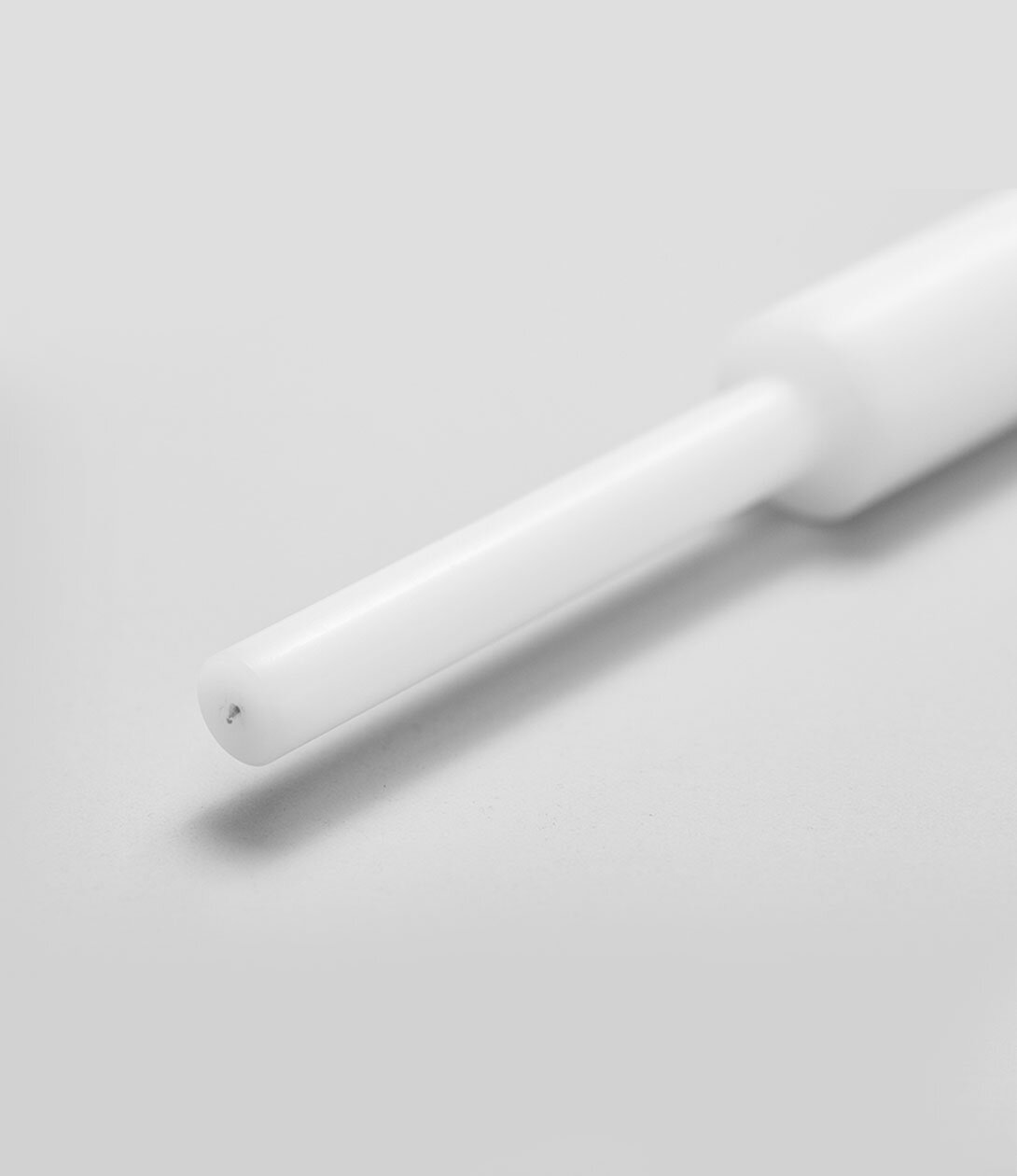

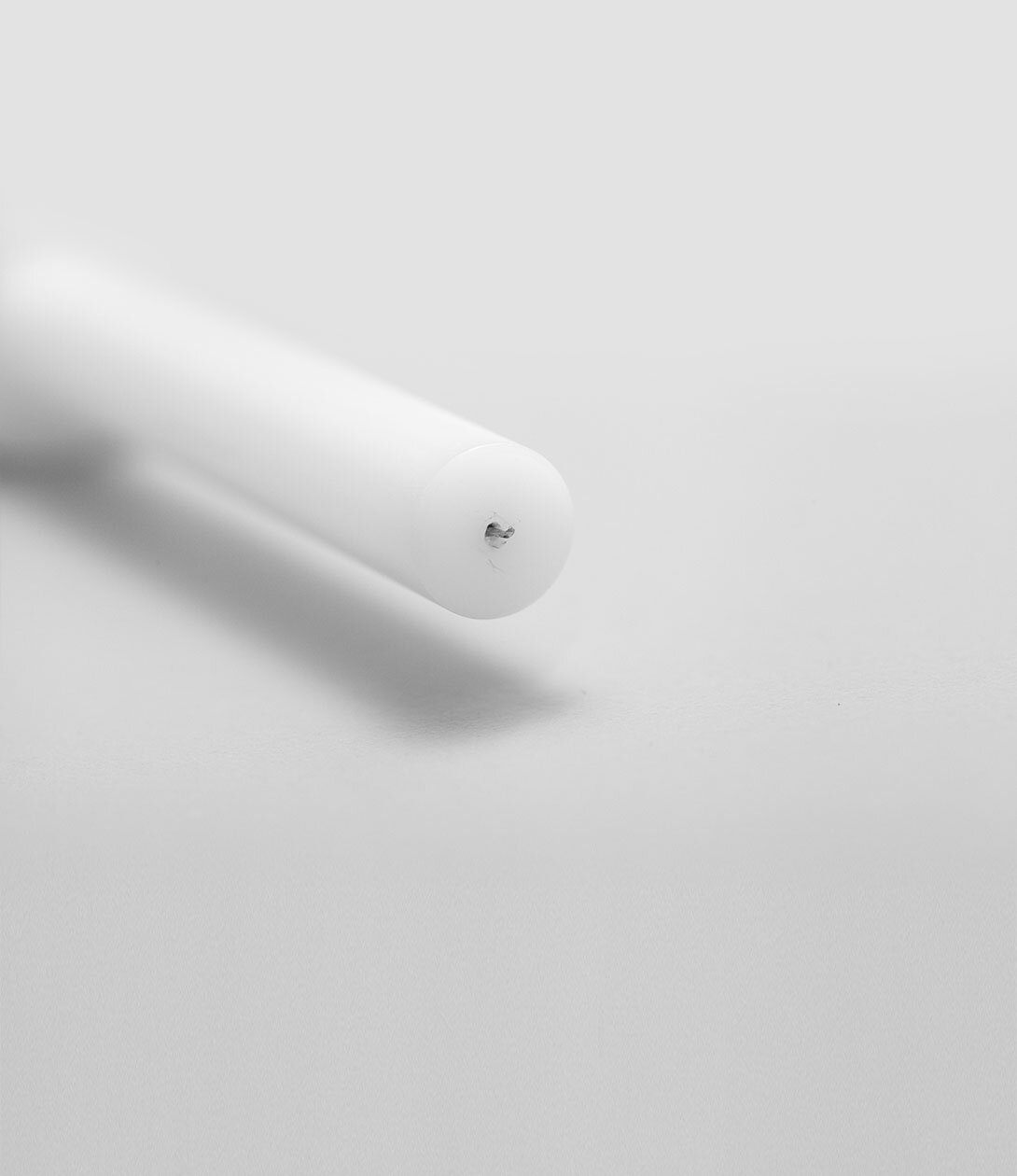

Frit inserting tool (PTFE) with pin needle | © LCTech GmbH
Frit Inserting Tool (PTFE)

Only for glass columns P/N 10374 and 19582.
With a pen needle for easy handling of the glass fibre filters

Diameter: 14 mm
Quantity: 1 piece
P/N 19608

Frit inserting tool (PTFE) long with pin needle | © LCTech GmbH
Frit Inserting Tool (PTFE), Long Version

Only for glass column P/N 11156.
With a pen needle for easy handling of the glass filters.

Diameter: 14 mm
Quantity: 1 piece
P/N 19620

How to Use the Frit Inserting Tool

Pick up the glass fibre filter with the frit inserting tool | © LCTech GmbH
Pick up the glass fibre filter with the frit inserting tool
Guide the frit inserting tool into the glass column | © LCTech GmbH
Guide the frit inserting tool into the glass column
Filter correctly placed in the glass column | © LCTech GmbH
Filter correctly placed in the glass column
SORBENTS AND ACCESSORIES

Silica for MOSH/MOAH

Bottle silica gel | © LCTech GmbH

Silica Gel 60 (60-200 µm)

Ready-to-use silica gel: Activated at 400 °C, well protected in resealable alumina bottle with QS-certificate

The material is ready for immediate use and can be taken directly from the aluminium bottle and filled into the desired empty column.

P/N 19600

Dosing aid silica gel | © LCTech GmbH

Dosing Aid

For MOSH/MOAH silica bottle (P/N 19600), parts with contact to the silica made of alumina, reusable, with PTFE sealing cap

P/N 19529
