Fully Automated Sample Preparation

FREESTYLE ThermELUTE™

The FREESTYLE ThermELUTE™ enables fully-automated sample preparation for the analysis of aflatoxins B1, B2, G1, G2 and M1 as well as ochratoxin A and zearalenone in all regulated matrices.

Products for mycotoxin analysis: AflaCLEAN™ SMART AflaCLEAN™ M1 SMART OtaCLEAN™ SMART Automation Multi-Mycotoxin Automation SPE Mycotoxin

Mycotoxin Clean-up with FREESTYLE ThermELUTE™

The FREESTYLE BASIC is equipped with the SPE and the ThermELUTE™ module for this purpose. The system is then combined with any HPLC system – the result is comprehensive automation with processing from the raw extract to the finished chromatogram without any manual working steps. Minimum workload for maximised sample throughput.

High sample throughput of up to 500 samples/week
Sample processing day and night and even at the weekend
Noteworthy sensitivity in the lower ppt range
Very good recovery rates
Reproducible results

The video is loaded on YouTube player, which provides information for analysis and marketing purposes to Google. If you agree with data being shared, click agree to accept.

Unique: Thermal Denaturation

The extracted, diluted and filtered sample is loaded onto the high-performance SMART column via the FREESTYLE system. After washing, the column is heated, breaking the bond between the toxin and antibody (thermal denaturation). The toxins are now eluted in a large volume as aqueous eluate directly into the HPLC sample loop via partial filling. Via an interface, the sample is released to and taken over by the HPLC, derivatised (aflatoxin B1, G1) and analysed. Meanwhile, the next sample is already being prepared by the FREESTYLE.

SMART Immunoaffinity Columns

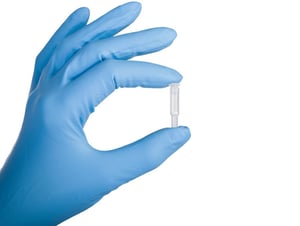

The system achieves a very high sample throughput by using the SMART IAC column, which is only 3.5 cm in size. Due to the miniaturisation of the overall process, the amount of samples and solvents required is significantly reduced along with the processing time for the sample.

Each sample is processed with one SMART column, which ensures 100% performance for every sample and reliably prevents cross-contamination.

Columns overview

Without special measures and additional process steps, the user can be certain that they are able to measure below the European limit values for each matrix, even for baby food

High sensitivity due to:

Injection of the entire eluate
No need for adaptation to the HPLC mobile phase
No losses due to evaporation or adsorption
No losses due to manual intermediate steps

Results

Robust and Reliable, Reproducible

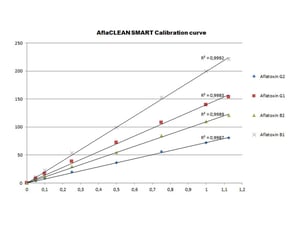

The ThermELUTE technology offers stable sample clean-up with automated injection in the LC. Linearity is present across a broad measuring range:

Reduction of the sample volume with simultaneous increase in measurement sensitivity
Acceleration of sample processing and autonomous analysis 24/7
Suitable for feed/food and baby food
Free from cross-contamination
Reproducible, fast with the highest measurement sensitivity
Measurement in the ppq range instead of ppt!

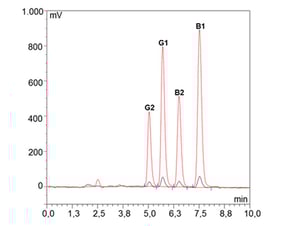

There is one default method per toxin, which is used for all regulated matrices. This simplifies the choice of method significantly, while maintaining flexible configuration. The chromatogram of a conventionally cleaned-up sample (black) and a sample cleaned up using ThermELUTE (red) shows that measurement sensitivity can be increased by a factor of 14.

Other chromatograms can be found in a summary of various matrices with a focus on the reproducibility of the results and the clarification that cross-contamination is not present in the following AppNote.

PRODUCT VIDEOS + WEBINARS

Videos

From raw extract to chromatogram.

Fully automated mycotoxin analysis

FREESTYLE ThermELUTE™ for high-sensitivity mycotoxin analysis

Mycotoxin Sample Preparation - IAC- or SPE-based QuEChERS Columns for Optimised Mycotoxin Sample Preparation by LCTech

Downloads

More Info about ThermELUTE™

Flyer: IAC-columns / FREESTYLE-ThermELUTE (pdf | 1.11 MB)
Scientific poster: Poster FREESTYLE ThermELUTE™ (pdf | 5.9 MB) Mycotoxin / Cannabis and Hemp Products / DIN A0 (pdf | 1.2 MB)
Brochures: Brochure FREESTYLE (pdf | 2.79 MB) Brochure Mycotoxins (pdf | 3.41 MB)
Application Notes: Milk, Raw Milk, Milk Powder / ThermELUTE / Aflatoxin M1 (pdf | 785.3 KB) Milk / AflaCLEAN M1 SMART / Aflatoxin M1 (pdf | 865.23 KB) Pistachios / AflaCLEAN SMART / Aflatoxins (pdf | 853.28 KB) Raisins / AflaCLEAN SMART / Aflatoxins (pdf | 861.14 KB) Baby Food / AflaCLEAN SMART /Aflatoxins (pdf | 903.68 KB) Figs / OtaCLEAN SMART / Ochratoxin (pdf | 695.92 KB) Raisins / AflaCLEAN SMART, OtaCLEAN SMART / Aflatoxins, Ochratoxin (pdf | 1 MB) Pumpkin Seed / OtaCLEAN SMART / Ochratoxin (pdf | 829.53 KB) Cinnamon/ AflaCLEAN SMART / Aflatoxins (pdf | 723.92 KB) Peanuts / AflaCLEAN SMART / Aflatoxins (pdf | 752.07 KB) Brazil Nut / AflaCLEAN SMART / Aflatoxins (pdf | 804.32 KB) Chilli / OtaCLEAN SMART / Ochratoxin (pdf | 626.43 KB) Hazelnuts / AflaCLEAN SMART / Aflatoxins (pdf | 1.14 MB) Hazelnuts / AflaCLEAN SMART / Aflatoxins (pdf | 1.38 MB) Peanuts / AflaCLEAN, AflaCLEAN SMART/ Aflatoxins (pdf | 2.32 MB) Hemp/ AflaCLEAN, AflaCLEAN SMART / Aflatoxins (pdf | 921.36 KB) Corn oil / ZeaCLEAN SMART / Zearalenone (pdf | 576.57 KB) Beer / OtaCLEAN SMART / Ochratoxin (pdf | 464 KB) Dry Parsley / OtacLEAN / OtaCLEAN SMART / Ochratoxin (pdf | 1.23 MB) Coffee / OtaCLEAN / ThermELUTE / Ochratoxin (pdf | 1.16 MB) Spices - Herbs / CrossTOX / ThermELUTE / Multi-Mycotoxin Analytic (pdf | 1.02 MB)

SYSTEM COMPARISON AND ACCESSOIRES

Mycotoxin Robotic Systems

High sample throughput
Cross-contamination-free
24/7 with pressure monitoring

Robust, reproducible, flexible
Maximum measurement sensitivity with measurements far below the regulated limits
Can be combined with any HPLC-FLD or LC-MS/MS system
